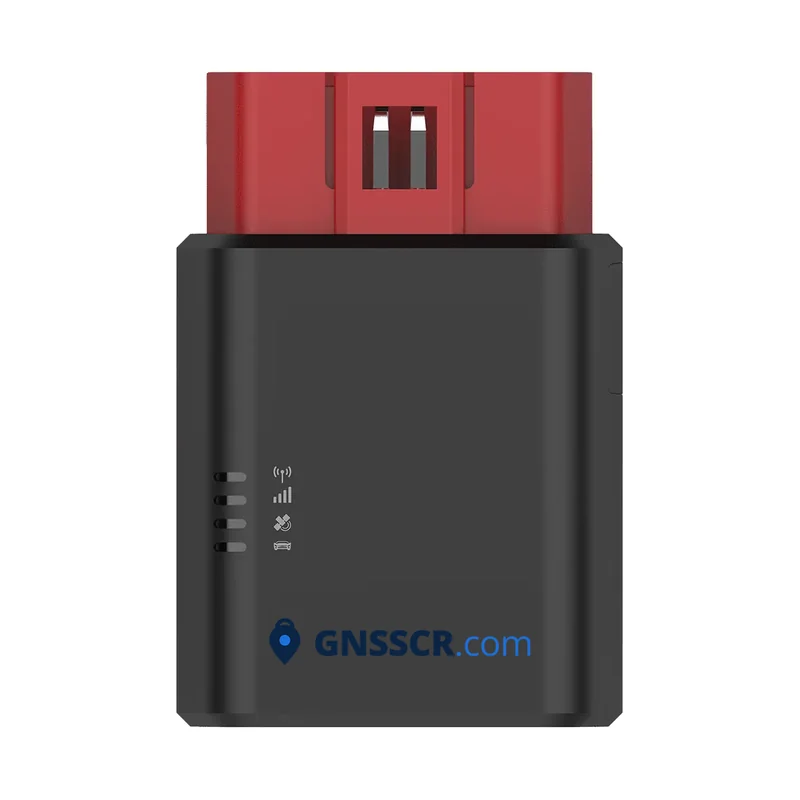

4G OBD2 GPS Tracker with WiFi Hotspot
$194
- Plug and play: installs in the OBD-II port in seconds, no wiring.
- Reads VIN, odometer, fuel level and diagnostic trouble codes.
- 4G LTE Cat 4 with 3G/2G fallback and a dual-band WiFi hotspot.
- Location every 3 seconds, harsh driving, crash and power alerts.
- ELD ready · Bluetooth for driver ID and cargo sensors · 73 g.
- Cars, vans and heavy trucks (J1939) · FCC, IC and CE certified.
Wholesale pricing from 20 units. Contact us on WhatsApp.
Worldwide shipping, quoted per order.
Description
The GNSSCR 4G OBD2 GPS Tracker plugs straight into the vehicle’s OBD-II port and starts reporting in minutes, with no wiring and no technician. It reads vehicle data such as VIN, odometer, fuel level and diagnostic trouble codes, reports location as often as every 3 seconds with accuracy under 2 meters, and shares a dual-band WiFi hotspot inside the vehicle. It works on cars, vans, pickups and heavy-duty trucks.
OBD2 GPS Tracker Features
Plug and Play
Plug it into the OBD-II port and it starts tracking. Move it to another vehicle in seconds whenever you need.
Vehicle Data Reading
Reads VIN, odometer, fuel level, ignition status and diagnostic trouble codes (read and clear), on light vehicles and heavy trucks (J1939).
4G LTE Cat 4 and WiFi Hotspot
Fast 4G LTE Cat 4 with 3G and 2G fallback, plus a 2.4 GHz and 5 GHz WiFi hotspot for drivers and passengers.
ELD Ready
Records driving time for hours-of-service (HOS) logs when paired with compatible ELD software.
Driving Behavior and Crash Detection
Detects harsh acceleration, braking and turning, records crash data, and a built-in buzzer coaches the driver in real time.
Bluetooth Accessories
Connects the driver ID key fob and Bluetooth cargo sensors, all on the same tracking platform.
Where to Use the OBD2 GPS Tracker
Fleets
Location, trips, fuel level, mileage and driver behavior for delivery, sales and service fleets.
Car Rental and Leasing
Install it between rentals in seconds and track mileage, location and vehicle health.
Trucks and Buses
Reads J1939 data from heavy vehicles and offers WiFi to drivers and passengers on the road.
Maintenance Alerts
Diagnostic trouble codes reach the platform as soon as they appear, so the workshop can plan ahead.
Technical Specifications
| Network | 4G LTE Cat 4 (FDD and TDD), with 3G WCDMA and 2G GSM fallback · up to 150 Mbps download |
|---|---|
| Positioning | GPS, GLONASS, BeiDou · < 2 m accuracy |
| Reporting interval | As frequent as every 3 seconds |
| WiFi hotspot | Dual band 2.4 GHz and 5 GHz (802.11 b/g/n/ac) |
| OBD-II protocols | ISO 15765 (CAN), SAE J1939, ISO 14230 (KWP2000), ISO 9141-2, SAE J1708 |
| Vehicle data | VIN, odometer, fuel level, ignition status, diagnostic trouble codes (read and clear) · varies by vehicle |
| ELD | Ready for hours-of-service (HOS) records with compatible ELD software |
| Power input | 7 V to 32 V DC (12 V and 24 V vehicles) |
| Backup battery | Li-Polymer 100 mAh / 3.7 V |
| Bluetooth | BLE 4.2 for wireless accessories |
| Alerts | Power disconnection, low battery, ignition, speeding, towing, jamming, harsh driving, crash |
| Driver coaching | Built-in buzzer |
| Offline memory | Up to 49,000 positions |
| Data security | MD5 / AES128 encryption · TCP, UDP, MQTT, SMS |
| Updates | Over the air (FOTA) |
| Operating temperature | -30 °C to +80 °C (-22 °F to 176 °F) |
| Dimensions | 52.8 × 47.8 × 24.8 mm (2.08 × 1.88 × 0.98 in) |
| Weight | 73 g (2.6 oz) |
| Certifications | FCC, IC, CE, RCM, CITC, TDRA, NBTC |
Compatible Bluetooth Accessories
Add a driver ID key fob and wireless sensors to the OBD2 GPS Tracker over Bluetooth.
Driver ID and Panic Button
A key fob that identifies each driver and sends an SOS event with one press. $20. View product
Door and Temperature Sensor
Reports every door opening and closing with its time and location, plus cargo temperature. IP67. $33. View product
Temperature and Humidity Sensor
±0.2 °C and ±2% RH with light sensor alerts, for refrigerated cargo. $30. View product
View all Bluetooth accessories
What’s in the Box
- 1 4G OBD2 GPS Tracker
The multi-carrier international SIM card (Nano SIM) is sold separately.
Wholesale Pricing and Worldwide Shipping
The listed price is for 1 unit. Wholesale pricing is available from 20 units. We ship worldwide, and shipping is quoted for each order based on destination and quantity.
